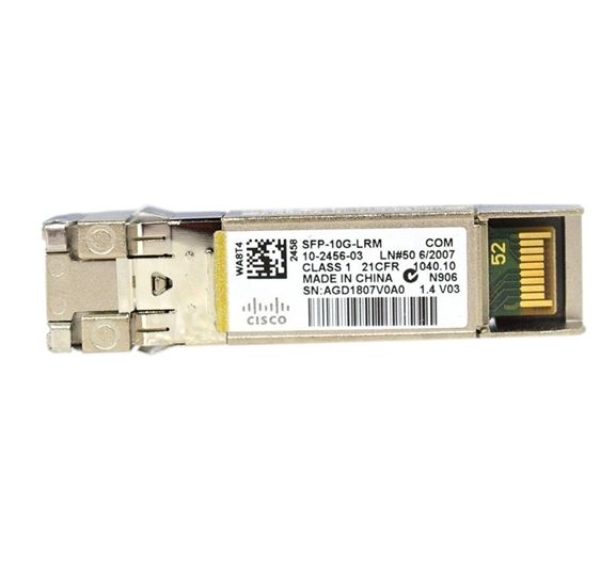

SFP-10G-LRM 10GBASE-LRM SFP Module 10GBASE-LRM SFP Module

Name: SFP10GLRM 10GBASELRM SFP Module 10GBASELRM SFP Module
Brand: Cisco
Price: 1 USD

SFP-10G-LRM 10GBASE-LRM SFP Module 10GBASE-LRM SFP Module Manufactures

Brand Name : Cisco

Model Number : SFP-10G-LRM

Certification : CE

Place of Origin : China

Model : SFP-10G-LRM

Transceiver form factor : SFP+

Connector Type : LC

Wavelength : 1310nm

Maximum Cable Distance : 220 m

Data Rate : 10 Gbps

Condition : Brand New Sealed

Warranty : 1 year

Payment : T/T, Western Union, Paypal

Shipment : DHL, Fedex, UPS

Contact Now

SFP-10G-LRM Overview

Cisco 10GBASE-LRM SFP+ transceiver module for MMF and SMF, 1310-nm wavelength, 220m, LC duplex connector.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	SFP-10G-LRM
Device Type	Plug-in module
Form Factor	SFP+
Date Rate	10.3Gbps
Wavelength	1310nm
Power Budget	3.4dB
Max Reach Distance	220m
Transmit Power	-6.5~0.5dBm
Receive Sensitivity	-12dBm
Voltage	3.3V
Power Consumption	1W
Connector	Dual LC
Fiber Type	MMF
Operation Temperature	0~70° C
DDMI	With
Application	10 Gigabit Ethernet

SFP-10G-LRM Specification

SFP-10G-LRM Specifications
Model	SFP-10G-LRM
Brand	Cisco
Data Rate	10 Gbps
Interface	LC Duplex
Connector Type	SFP+
Optical Fiber Type	Single-mode
Maximum Cable Distance	220 m
Wavelength	1310 nm
DOM Support	Yes
Compatibility	Cisco Catalyst Switches, Cisco Nexus Switches, Cisco ASR Routers
Hot Swappable	Yes
MTBF	1,000,000 hours
Power Consumption	1.5W
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Operating Humidity	5% to 95%, non-condensing
EMI Standards	FCC Part 15 Class B, CISPR Class B, EN 55022 Class B, VCCI Class B
Safety Standards/Approvals	UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1
Dimensions	8.45 x 13.4 x 56.5 mm

SFP-10G-LRM 10GBASE-LRM SFP Module 10GBASE-LRM SFP Module
