eSFP-GE-SX-MM850 Huawei SFP Module ESFP GE SX MM850 Is Optical Transceiver And A Multi-Mode Module

Brand Name : Huawei eSFP-GE-SX-MM850

Model Number : eSFP-GE-SX-MM850

Certification : CE eSFP-GE-SX-MM850

Place of Origin : China eSFP-GE-SX-MM850

MOQ : 1pc

Price : FTF

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 1000

Delivery Time : 1-2days

Packaging Details : Carton packaging for 1pics

Product Code : eSFP-GE-SX-MM850

Transceiver form factor : eSFP eSFP-GE-SX-MM850

Transmission speed : GE eSFP-GE-SX-MM850

Connector type : LC eSFP-GE-SX-MM850

Net Dimension(D x W x H mm) : 110 x 70 x 37

Shipment : DHL,UPS,TNT,

Standard compliance : 1000base-SX

Warranty : 1 Year

Contact Now

eSFP-GE-SX-MM850

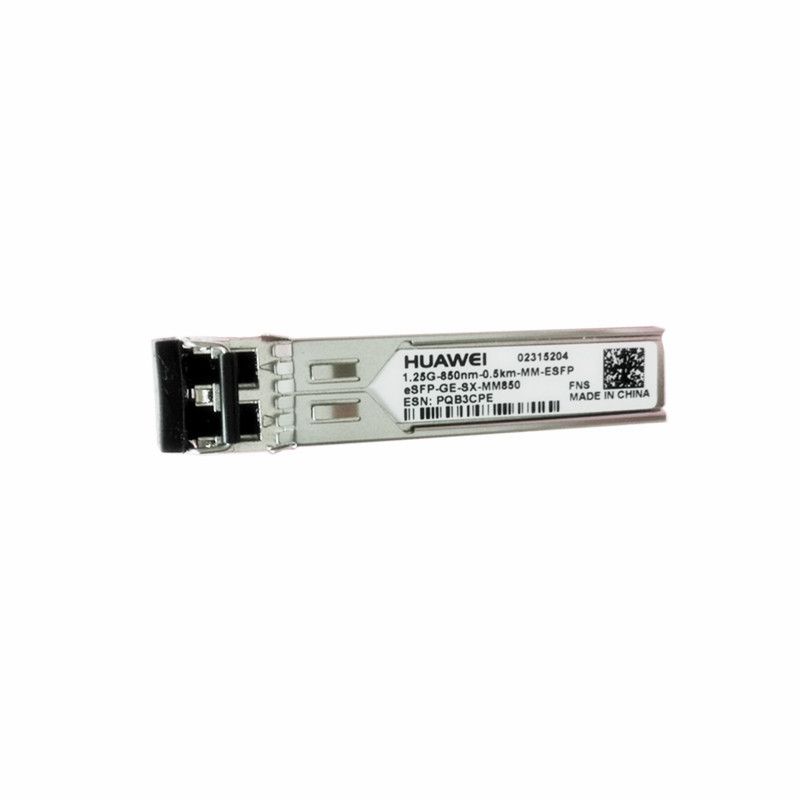

Huawei eSFP-GE-SX-MM850 is Optical Transceiver. It’s a Multi-mode Module.

eSFP-GE-SX-MM850 Specification
Transceiver form factor eSFP
Transmission speed GE
Center wavelength (nm) 850
Standard compliance 1000base-SX
Connector type LC

Applicable cable and maximum

transmission distance

 · Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
· Multimode fiber (OM1): 0.275 km
· Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
· Multimode fiber (OM2): 0.55 km
· Multimode fiber (OM3): 1 km
Transmit power (dBm) -9.5 to -2.5
Maximum receiver sensitivity (dBm) -17.0
Overload power (dBm) 0
Extinction ratio (dB) 9
Operating temperature 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) 110 x 70 x 37
