| BOM | - USG6630E-AC: 02352FQA
- USG6630E-DC: 02352CKV
|
| System specifications |
| CPU | Multi-core 2.3 GHz processor |
| Memory | DDR4 16 GB |
| Flash | 32 MB |
| Storage | 32 GB |
| Hard disk | Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/1000 GB) from Huawei based on the site requirements. The hard disk is hot swappable. |
| Dimensions and weight |
| Basic dimensions (Ha x Wbx D) | 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in., 1 U) |
| Maximum dimensions (Hax Wb x D) | 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.4 in. x 17.48 in., 1 U) |
| Weight | 7.6 kg |
| Power consumption and heat consumption |
| Maximum power consumption | - USG6630E-AC: 195.8 W
- USG6630E-DC: 177.0 W
|
| Maximum heat consumption | - USG6630E-AC: 669.5 BTU/hour
- USG6630E-DC: 605.2 BTU/hour
|
| Power specifications |
| AC model | Supported, 1+1 power redundancy, hot-swappable |
| Rated input voltage (AC) | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage (AC) | 90 V to 290 V, 47 Hz to 63 Hz |
| Maximum input current (AC) | 9 A |
| Maximum output power (AC) | 600 W |
| DC model | Supported, 1+1 power redundancy, hot-swappable |
| Rated input voltage (DC) | -48 V to -60 V |
| Maximum input voltage (DC) | -38.4 V to -72 V |
| Maximum input current (DC) | 11 A |
| Maximum output power | 350 W |
| Heat dissipation |
| Fan module | Supported, hot-swappable |
| Number of fans | 3 |
| Air flow (hot air flow, viewed facing the front panel) | Air inlet from front and air outlet from rear |

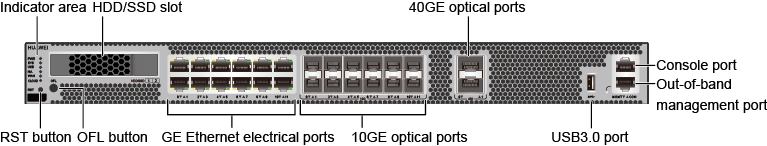

| Port density |
| Out-of-band management port | 1 (RJ45) |
| Console port | 1 (RJ45) |
| USB3.0 port | 1 |
| Service ports in standard configuration | - 12 10/100/1000M autosensing Ethernet electrical ports
- 12 10GE autosensing Ethernet optical ports
- 2 40GE autosensing Ethernet optical ports
|
| Environment specificationsc |
| System reliability | MTBF (year) | 29.34 |
| MTTR (hour) | 2 |
| Ambient temperature | Without hard disk driver: 0°C to 45°C With hard disk driverd: 5°C to 40°C |
| Storage ambient temperature | -40°C to 70°C |
| Operating ambient relative humidity | 5% RH to 95% RH, non-condensing |
| Storage ambient relative humidity | 5% RH to 95% RH, non-condensing |
| Altitude | Without hard disk driver: 0 m to 5000 m With hard disk driver: 0 m to 3000 m |
