Cisco 100 Gigabit Optical Modules QSFP-100G-AOC10M QSFP Active Optical Cable, 10m
QSFP-100G-AOC10M Overview
The Cisco® 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our new generation of 100G transceiver modules solution based on a QSFP form factor.

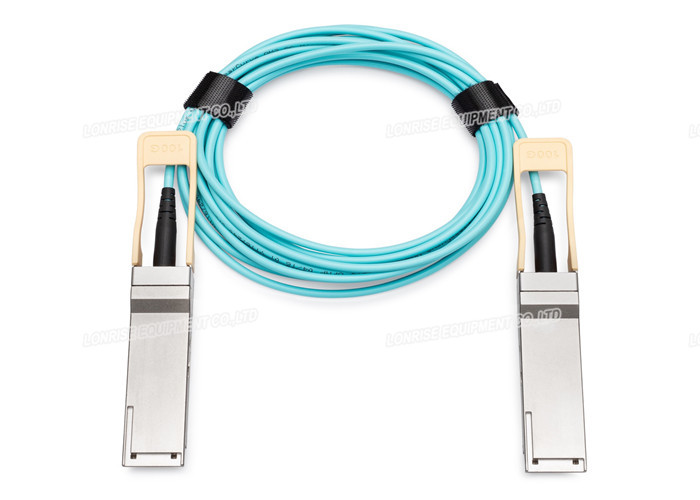

Cisco QSFP-100G to QSFP-100G AOC cables (Figure 4) are suitable for short distances and offer a flexible way to connect within racks and across racks. Active optical cables are much thinner and lighter than copper cables, which makes cable management easier. AOCs enable efficient system airflow, which is critical in high-density racks. Cisco currently offers active optical cables in lengths of x=1, 2, 3, 5, 7, 10, 15, 20, 25, and 30 meters.
QSFP-100G-AOC10M Specification
Features and benefits of Cisco QSFP modules
● Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port
● Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
● Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability
● High-speed electrical interface compliant to IEEE 802.3bm
Table 1. Cisco QSFP-100G Portfolio
| Product | Description | Connector Type |
| QSFP-100G-SR4-S | 100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF | MPO-12 (12 fibers) |
| QSFP-40/100-SRBD | 100G and 40GBASE SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF | LC |
| QSFP-100G-LR4-S | 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF | LC |
| QSFP-100G-ER4L-S | 100GBASE QSFP Transceiver, 25-40KM reach over SMF, Duplex LC | LC |
| QSFP-100G-CWDM4-S | 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF | LC |
| QSFP-100G-PSM4-S | 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF | MPO-12 (12 fibers) |
| QSFP-100G-SM-SR | 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C | LC |
QSFP-100G-CU
(1M, 2M, 3M, 5M) | 100GBASE-CR4 Passive Copper Cable | |
QSFP-4SFP25G-CU
(1M, 2M, 3M, 5M) | 100GBASE QSFP to 4xSFP25G Passive Copper Splitter Cables | |
QSFP-100G-AOC
(1M, 2M, 3M, 5M, 7M, 10M, 15M, 20M, 25M, 30M) | 100GBASE QSFP Active Optical Cables |
