Huawei LS-S5328C-EI-24S 24 Ports 100/1000Base-X.4 Combo GE S5300 Series Switch

Name: Huawei LSS5328CEI24S 24 Ports 1001000BaseX4 Combo GE S5300 Series Switch
Brand: Huawei LS-S5328C-EI-24S
Price: 1 USD

Huawei LS-S5328C-EI-24S 24 Ports 100/1000Base-X.4 Combo GE S5300 Series Switch Manufactures

Brand Name : Huawei LS-S5328C-EI-24S

Model Number : LS-S5328C-EI-24S

Certification : CE Huawei LS-S5328C-EI-24S

Place of Origin : CHINA LS-S5328C-EI-24S

MOQ : 1UNIT

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 35 Units/Month

Delivery Time : 2-3days

Packaging Details : NEW IN BOX

Transmission Rate : 10 / 100 / 1000 Mbps LS-S5328C-EI-24S

Communication Mode : Full-Duplex & Half-Duplex

Number Of LAN Ports : 24 LS-S5328C-EI-24S

Product Type : Switch LS-S5328C-EI-24S

Function : QoS, SNMP, Stackable, VLAN Support

Warranty : 2 years LS-S5328C-EI-24S

Lead Time : within 2 - 3 days after received payment

Shipping : DHL,FedEx,TNT,UPS,EMS

Contact Now

Huawei LS-S5328C-EI-24S 24 Ports 100/1000Base-X.4 Combo GE S5300 Series Switch

1 . Description:

Quidway S5300 series gigabit switches are new generation Ethernet gigabit switches that meet the requirements for high-bandwidth access and Ethernet multi-service convergence, providing powerful Ethernet functions for operators and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP), the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting the requirements for the 1G and 10G uplink devices of high density.

Item	S5306TP-LI	S5300-SI	S5300-EI	S53HI
Fixed port	S5306TP-LI: four 10/100/1000Base-T ports and two gigabit Combo ports S5324TP-SI/S5324TP-PWR-SI/S5328C-SI/S5328C-PWR-SI: twenty 10/100/1000Base-T ports and four gigabit Combo ports S5348TP-SI/S5348TP-PWR-SI: forty-four 10/100/1000Base-T ports and four gigabit Combo ports S5352C-SI/S5352C-PWR-SI: forty-eight 10/100/1000Base-T ports S5328C-EI/S5328C-PWR-EI: twenty-four 10/100/1000Base-T ports S5328C-EI-24S: twenty 100/1000Base-X ports and four gigabit Combo ports S5352C-EI/S5352C-PWR-EI: forty-eight 10/100/1000Base-T ports S5328C-HI: twenty-four 10/100/1000Base-T ports S5328C-HI-24S: twenty-four 100/1000Base-X ports
Extended slot	The S5306 has no extended slot. The 5300TP provides a stacking extended slot. The S5300C provides two extended slots. One supports subcards and the other supports stacking cards. The S5300HI provides an extended slot that supports subcards.
Forwarding performance	S5306: 9 Mpps S5324TP-SI/S5324TP-PWR-SI: 36 Mpps S5348TP-SI/S5348TP-PWR-SI: 72 Mpps S5328C-PWR-EI:66Mpps S5352C-PWR-EI:102 Mpps S5328C-SI/S5328C-PWR-SI/ S5328C-EI/ S5328C-EI-24S/S53HI: 96 Mpps S5352C-SI/S5352C-PWR-SI/ S5352C-EI: 132 Mpps
switching capacity	S5306: 12 Gbit/s S5324TP-SI/S5324TP-PWR-SI: 48 Gbit/s S5328C-PWR-EI:88Gbit/s S5352C-PWR-EI:136Gbit/s S5348TP-SI/S5348TP-PWR-SI: 96 Gbit/s S5328C-SI/S5328C-PWR-SI/ S5328C-EI/ S5328C-EI-24S/S53HI: 128 Gbit/s S5352C-SI/S5352C-PWR-SI/ S5352C-EI: 176 Gbit/s
MAC address table	LI/SI: 16 K; EI/HI: 32 K Supports learning and aging of MAC addresses. Supports static, dynamic, and blackhole MAC address entries. Supports packet filtering based on source MAC addresses.
VLAN features	Supports up to 4,096 VLANs. Supports guest VLANs and voice VLANs. Supports VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports. Supports 1:1 and N:1 VLAN switching. Supports basic QinQ and selective QinQ.

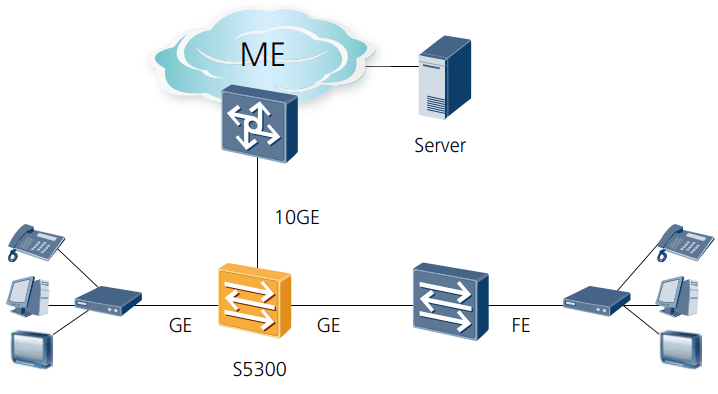

Application on Large-Scale Enterprise Networks
The S5300HI functions as the access device and aggregation device on large-scale enterprise networks and improves network reliability by link binding, dual-homing, and ringing.

Huawei LS-S5328C-EI-24S 24 Ports 100/1000Base-X.4 Combo GE S5300 Series Switch

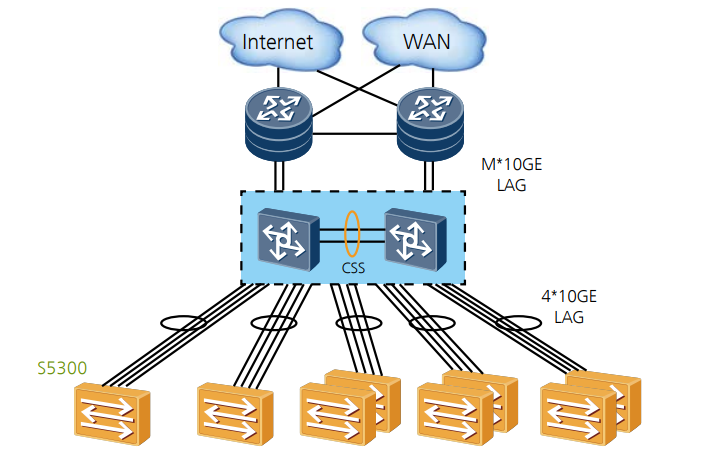

Application in Data Centers
The S5300 can be used in a data center to access the gigabit server and connect to upper-layer devices by link aggregation. If multiple servers are available, you can use the stacking technology to improve network reliabilit.

Huawei LS-S5328C-EI-24S 24 Ports 100/1000Base-X.4 Combo GE S5300 Series Switch

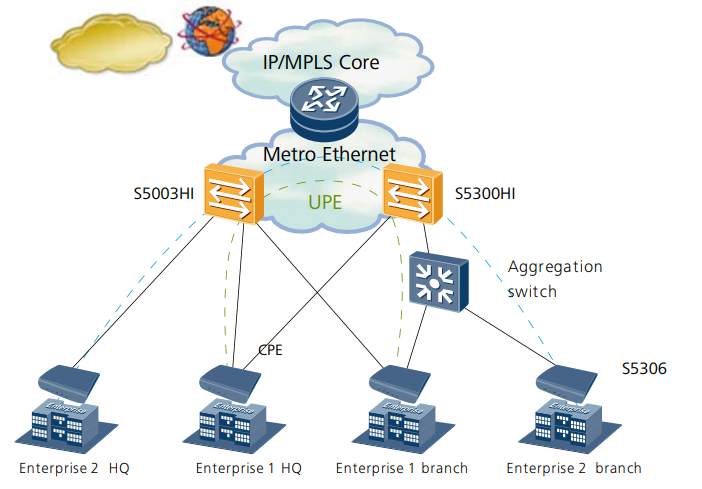

CPE and UPE
The S5306TP-LI can be used as a CPE switch and the S5300HI can be used as a UPE switch.
The S5306 and the S5300HI can provide high-quality leased line for enterprises by using powerful hardware OAM.

Huawei LS-S5328C-EI-24S 24 Ports 100/1000Base-X.4 Combo GE S5300 Series Switch

2 . Company

Huawei LS-S5328C-EI-24S 24 Ports 100/1000Base-X.4 Combo GE S5300 Series Switch

Represented Brands
• LONRISE is certified dealer of Cisco in China, we are engaged in supplying whole series of networking products, such as switches, routers, access point(AP), firewall, fiber modules and other GPON,EPON
